updated 6/18/02, updated 1/14/2003, 1/19/2004,11/07/2006,11/09/2007
The air induction system improves engine performance by using the intake manifold runner control (IMRC) assemblies as follows:

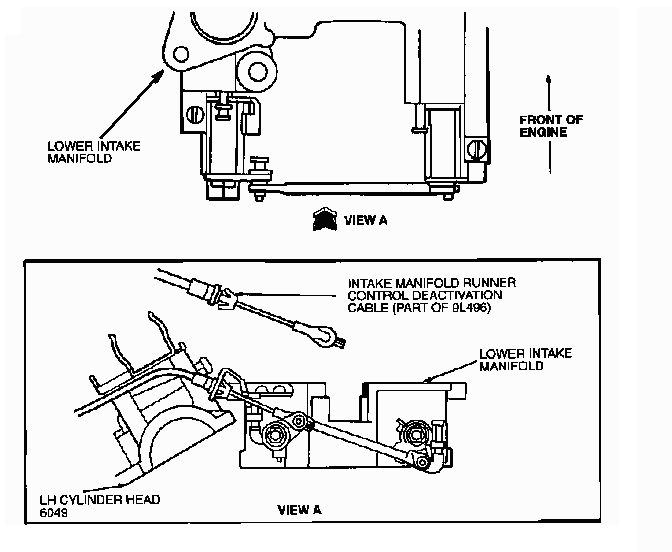

The intake manifold has two runners per cylinder, feeding each of the
intake parts in the cylinder heads. The IMRC assemblies are located
between the intake manifold and cylinder heads, providing two air passages
for each cylinder.
One air passage is always open and the other passage switches from
closed to open by means of a valve plate. Below 3000 rpm, this valve
plate is closed to improve low-speed and cold engine performance.
Above 3000 rpm, this valve plate opens to improve high-speed engine performance.
This is what you hear as your car hits 3400 rpm's; the "secondaries" open
up. If you can't hear this on your car, and your SHO seems a bit
slower or sluggish, your IMRC deactivation motor may be damaged.
It will need to be replaced to bring the SHO back up to speed again.

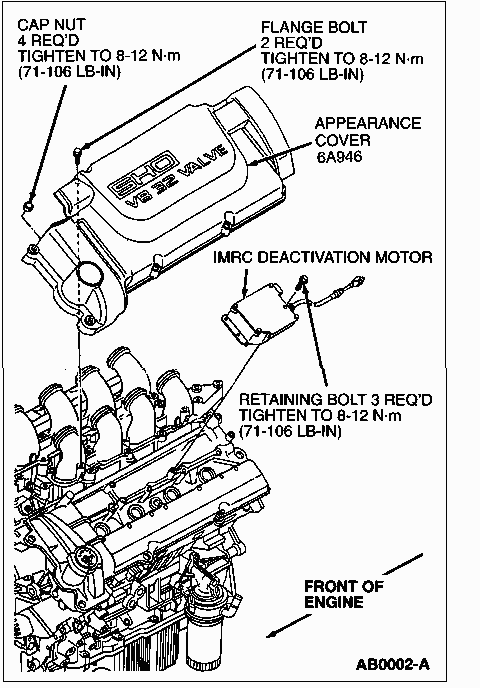

The valve plates are opened and closed by the IMRC deactivation motor, which is controlled by the powertrain control module (PCM).
The IMRC deactivation motor has been known to fail, causing poor performance at wide open throttle. Some tell tale signs are 16 second 1/4 mile times or the absence of hearing the secondaries open at part throttle at 3,400 rpm's. In some cases, the cable that controls the IMRC deactivation motor breaks or the wheel inside the IMRC deactivation motor housing has broken. In either case, verifying if this is the problem is a simple task. However, it requires replacement of the IMRC deactivation motor. That procedure will follow.
Procedure for replacement of IMRC Deactivation Motor is forthcoming.
Hello Don
If you take the appearance cover off you can see the IMRC cable and the front
butterfly actuator. When idling in park, if you goose the throttle WOT and
immediately let go of it you will see the IMRC pull on the cable just before it
hits the rev limiter and when you let the throttle loose it will do a very quick
blip of the IRM butterflies. Very easy and noticeable.
Paul N
The operation of the IMRC butterflies can be easily checked without removing anything. First locate the throttle body accelerator cable end and arm, check that you can blip the throttle.

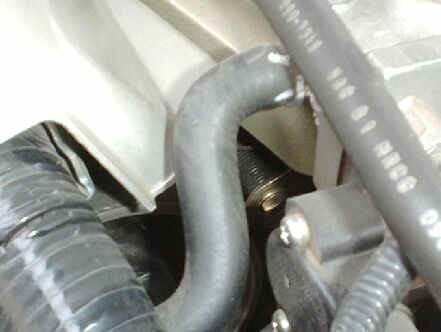

Next observe the return spring, arm and nut shown in the picture under the end of the appearance cover, between the two rubber hoses, this is the butterfly actuator arm. Increase engine RPM until you reach the rev. limiter at 4,000 RPM.
Just before you hit the rev. limit you will see the nut and arm rotate approx. 90 deg. anti-clockwise (towards the front of the motor). Ease off the throttle and you will see the arm and nut return to the original position.
This is the behavior of a correctly operating IMRC.
jj
Here are the voltages at the plug disconnected from the IMRC mtr. Engine at idle closed butterflies.
IMRC Plug
top row
0v 1 - Ground (BK/W)
12v 2 - Power (R)
0v 3 - PCM Inlet Air Control (BR)
bottom row
0v 4 - Signal Return (GY/R)
5v 5 - PCM to IMRC (DB/Y)
6 - Not used
On my own I didn't have enough hands to run the test and handle the meter. The lid of the box holds the motor down, so to meter the box you also have to hold the motor down as well. If I can borrow some hands I'll get the operating voltages. But it looks like the motor is 12v and the rest 0-5v.
It looks like pin 3 is the command to open the IMRC and pin 4 indicates if the IMRC is open or not.
Here's a pic. of the mark 1 test bed in use.
jj
Larry, here's a better picture of the front valve cover and IMRC. If you'd like, the next weld job I do I'll get you a couple of good in-depth pictures of the lower intake and IMRC. Thanks, Matt Michael
__________________________________________________________________________
Updated 11/07/2006
OK so some detail that is not on the website for
replacing the IMRC cable.
-Took off the appearance cover.
-Pulled the harness out of the 3 clips and removed the
harness bracket (2 10mm bolts)
-Lifted the cable from it's retainer by compressing
the rear side and pulled it through the bracket.
-Used a large screwdriver to actuate the runner cam to
fully opened, then popped the holder on the end of the
cable off the runner mechanism with needle nose pliers
(thanks for the suggestion!)
-Removed 3 more 10mm bolts to take IMRC box off the
car.
-Removed 4 Phillips screws from IMRC cover.
-Did not screw around - used 6 lb sledge and thin
screwdriver to pop open IMRC cover by tapping it into
the adhesive - worked very easily. (Yes - take a
moment to chuckle at my use of the "Engineer's rule")
-Removed plastic hex screw (Thanks for the tip to keep
me from breaking the circuit board!) and 5 metal
screws - circuit board is loose.
Now....
How on earth do I free up the electrical connector to
get out the circuit board?
What next?
How to I get the gears into the proper position when I
put the motor back in so it is ready to actuate the
runner butterflies?
I have a bunch of detailed pics but my son is on the
computer with the software to shrink them to list
friendly size.
I'm also wondering if this cable is in fact the same
one off the Duratec. I asked my buddy last night who
used to be the PM for the 3.0 Duratec in what we call
the Gen IV SLO, but he said by then it did not have
butterfly valves.
Jim
'98 TR - Poor man's intake
'96 TR - Welded, FPS tuner, Copper motorcraft plugs, Poor man's intake, Opened stock exhaust for that V-8 burble
'89 Black - MTX drain plug mod, Redline MTX fluid, RIP
'01 E-450
'06 Rendezvous AWD
'07 DTS
___________________________________________________________________________
Getting the connector out really is the hardest part, chip away at all the sealant
around the plug. A hairdryer may help soften it up.
You can't really put the gears back in "out of time" the same pulley that pulls on the cable actuates the board mounted switch that the IMRC uses to determine that the butterflies are closed. In that respect it is a very intelligent design.
Scott K
___________________________________________________________________________
Cool!! I guess it is ready to put it back together
then.
Jim
___________________________________________________________________________
I ended up getting the board out by using a soldering iron and de-soldering braid to disconnect the clip....this is much easier than trying to tap through the epoxy seal.
Alex Schroeder
